Greenlee Ground Fault Loctor CCT-PE2003

Normally Ships Same Day
Old price: $1,550.50
$1,325.00

Greenlee Pulse-Ground Fault Locator

Description

  • Identifies the exact location of even the smallest breaks in insulation by "pulsing" a high-voltage signal that radiates into the earth at the location of the faults. With the A-frame mounted receiver, a visual analog meter points the way to the source of the voltage
  • Multiple faults on a single wire can be identified indicating the need to replace instead of repair
  • Extra-long test leads feature heavy-duty alligator clips for use on multiple cable types

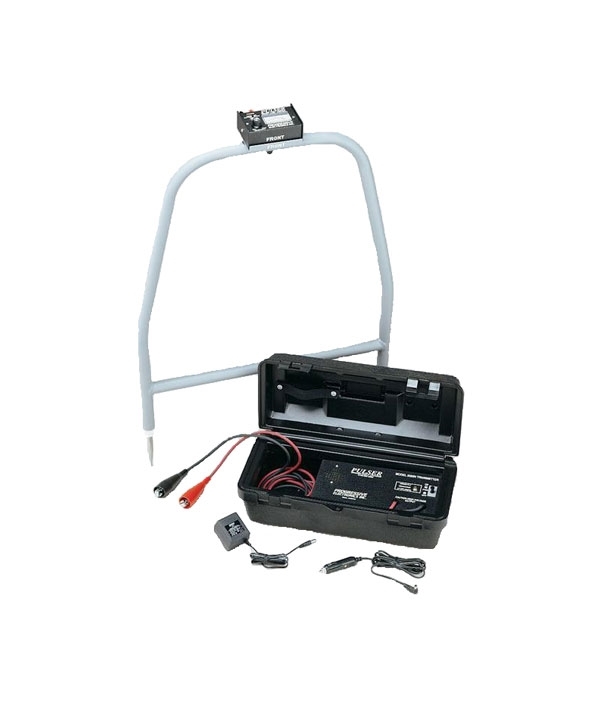

  • Includes a rechargeable transmitter, receiver, A-frame, ground stake,120V charger and a 12V DC (cigarette lighter) adapter
  • Battery operated (one 12V and one 9V battery are included)
  • Molded carrying case included

Specifications:

  • Battery :
    • Transmitter: (1) 12 V Rechargeable Battery
    • Receiver: (1) 9 V Battery
  • Battery Life :
    • Transmitter - 23 HR Per Charge
    • Receiver - 200 HR
  • Construction :
    • Transmitter-Aluminum Housing In Polyethylene Case
    • Receiver-Powder Coated Aluminum
  • Dimensions : 17.000 IN (421.000 MM) X 8.500 IN (215.000 MM) X 6.500 IN X(160.000 MM) Transmitter, 33.500 IN (840.000 MM) X 21.750 IN (550.000 MM) X 3.250 IN (8.000 MM) On A-Frame Receiver
  • Model : PE2003
  • Replacement Part :
    • 2000H Transmitter (IncludesCH1 And CH2)
    • 2000R Receiver
    • AF2 A-Frame
    • CH1 AC Charger
    • CH2 DC Charger
  • Transmitter Power : 2400 VDC Peak
  • Voltage Protection : 240 VAC/400 VDC
  • Weight : 12.500 LB (5.700 KG)
