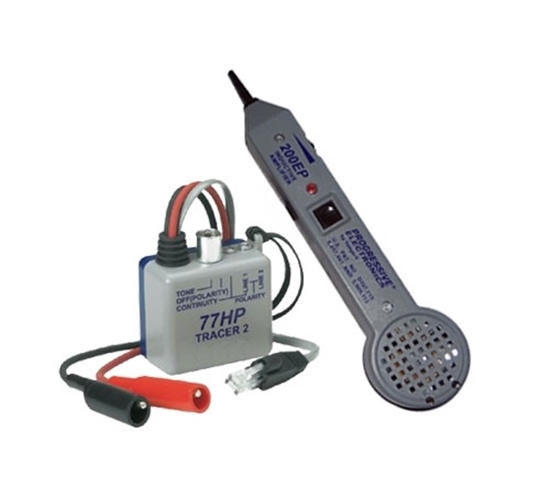

Tone and Probe Set CCT-77HP

Normally Ships Same Day
Availability: In stock
$95.50
PRICE BREAKS - The more you buy, the more you save
Quantity5+
Price$91.75
Features of Probe:
  • Resistive plastic carbon-fiber tip to prevent accidental shorts when probing wires
  • Adjustable volume sensitivity control
  • Battery compartment
  • Recessed terminal ports for handset connection
  • Spring-loaded ON/OFF/flashlight button
  • LED

Specifications of Probe:
  • Gain (nominal): 30 db
  • Input Impedance (nominal): 100 MΩ
  • Probe Tip Resistance (min): Metal tip - 0Ω, Plastic tip - 300Ω
  • Headset: 3.5mm stereo plug; 8 ohms minimum
  • Battery: 1 9VDC
  • Battery Life (nominal): 50 hrs
  • Weight: 5.2oz
  • Operating/Storage Temperature: 32°F to 122°F

Features of Tone Generator:
  • Battery compartment
  • Toggle switch
  • LEDs
  • Test leads
  • Modular cord

Specifications of Tone Generator:
  • Talk Battery (into 600 Ω): 4.6VDC
  • Output Power (into 600 Ω): +10 dBm
  • Resistive Short Visual Indication: <10 kΩ
  • Resistive Short Audio Indication: <200 kΩ
  • Output Frequency (nominal): Tone - alternating 890/960 Hz, Warbling: Slow - 1.3 Hz, Fast - 6 Hz
  • Voltage Protection (into 600 Ω circuit): 52 VDC
  • Battery: 9 VDC
  • Battery Life: 50 hours
  • Weight: 4.5oz
  • Operating Temperature: 32°F to 122°F
  • Storage Temperature: -58°F to 167°F

Kit Includes:
  • 77HP Tone Generator
  • 200EP Inductive Probe
  • Carry Case
  • 2 Different Probe Tips
  • Requires 2 9v batteries (INCLUDED)
