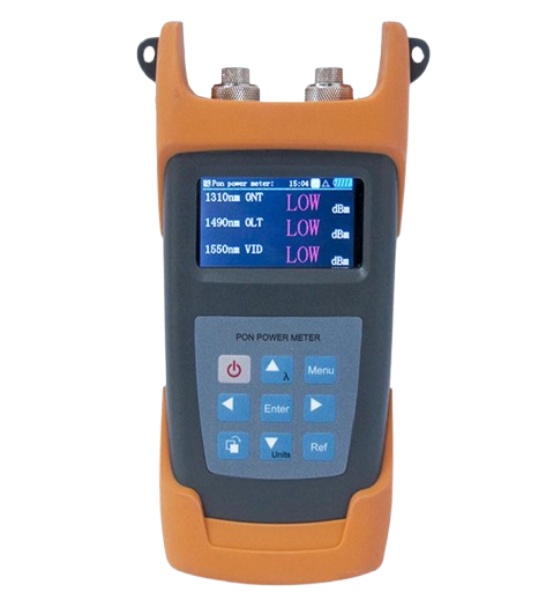

XGPON/10GEPON power meter is a new tester for FTTX network. It has all the functions of traditional PON tester. Besides, it also has the function of the next generation PONtesters. The XGPON optical power meter could judge whether the power value is suitable or not byself-setting the threshold. It is an ideal tester for PON network and maintenance.
XGPON /10GEPON Module:
Wavelength 1270nm 1577nm
Range（dBm） +10～-40 +10～-40
Spectral band pass 1270±20 1577±20
Isolation 1577nm＞40dB 1270nm＞40dB
Other:
In penetration mode IL（dB）≤1.5dB
Uncertainty ≤0.5dB
Resolution 0.01dB
Threshold setting 10
Data storage 1000pcs
Working temperature -10℃～+60℃
Relative humidity 0%～95%RH
Connector type SC/APC (FC/APC optional)
Communication port USB
Power supply 3pcs AA1.5V battery
Working time Working time≥20H，standby time≥60H
Size L*W*H 192mm×102mm×50mm
Weight 420g
