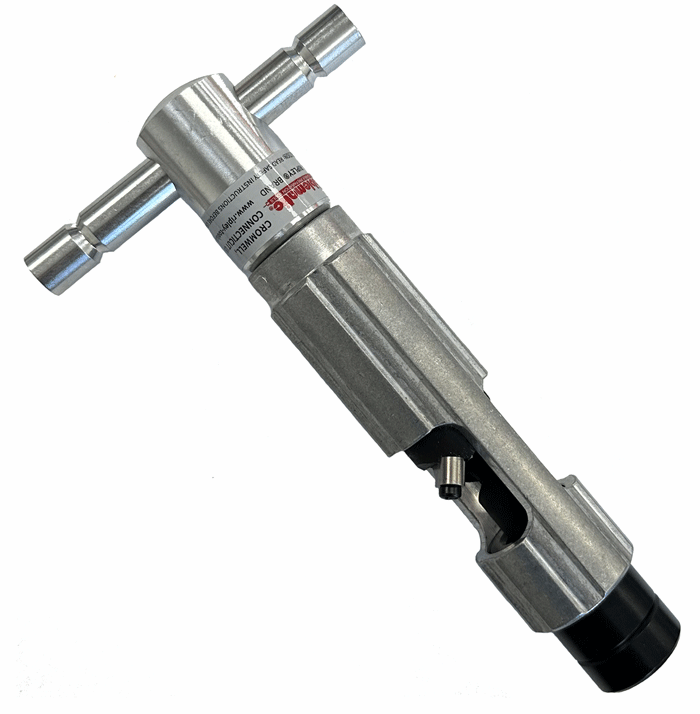

Ripley Coring Tool CCT-CST-540QR

Normally Ships Same Day
$165.50

The CST-540QR from Ripley simultaneously strips the jacket, cores the dielectric, strips the aluminum sheath and trims the conductor to the proper length in one fast and precise operation on CommScope Quantum Reach (QR), Times Fiber Communications (TFC) TX10, and Alcatel Cable Benelux-ACW.

Features:

  • Heat treated, sheath cutting blade produces a smooth beveled edge and can be changed without the expense of replacing the entire coring bit
  • Preset jacket blade assures there is no scoring or nicking of the aluminum sheath
  • Rugged, durable all-metal construction
  • Not recommended for use on flooded cable

Specifications:
  • Manual or drill operation; JCST tools have a standard "T" handle with a built-in 3/8 inch (9.5 mm) drill adapter
  • Includes 2 hex wrenches for any needed adjustments
  • Cable Size: CST-540QR
  • Length: 7.5in
  • Weight: 1lb 8oz
  • Made in the U.S.A
